SMC 720R - rozkres - CRANKCASE
Detailní popis produktu

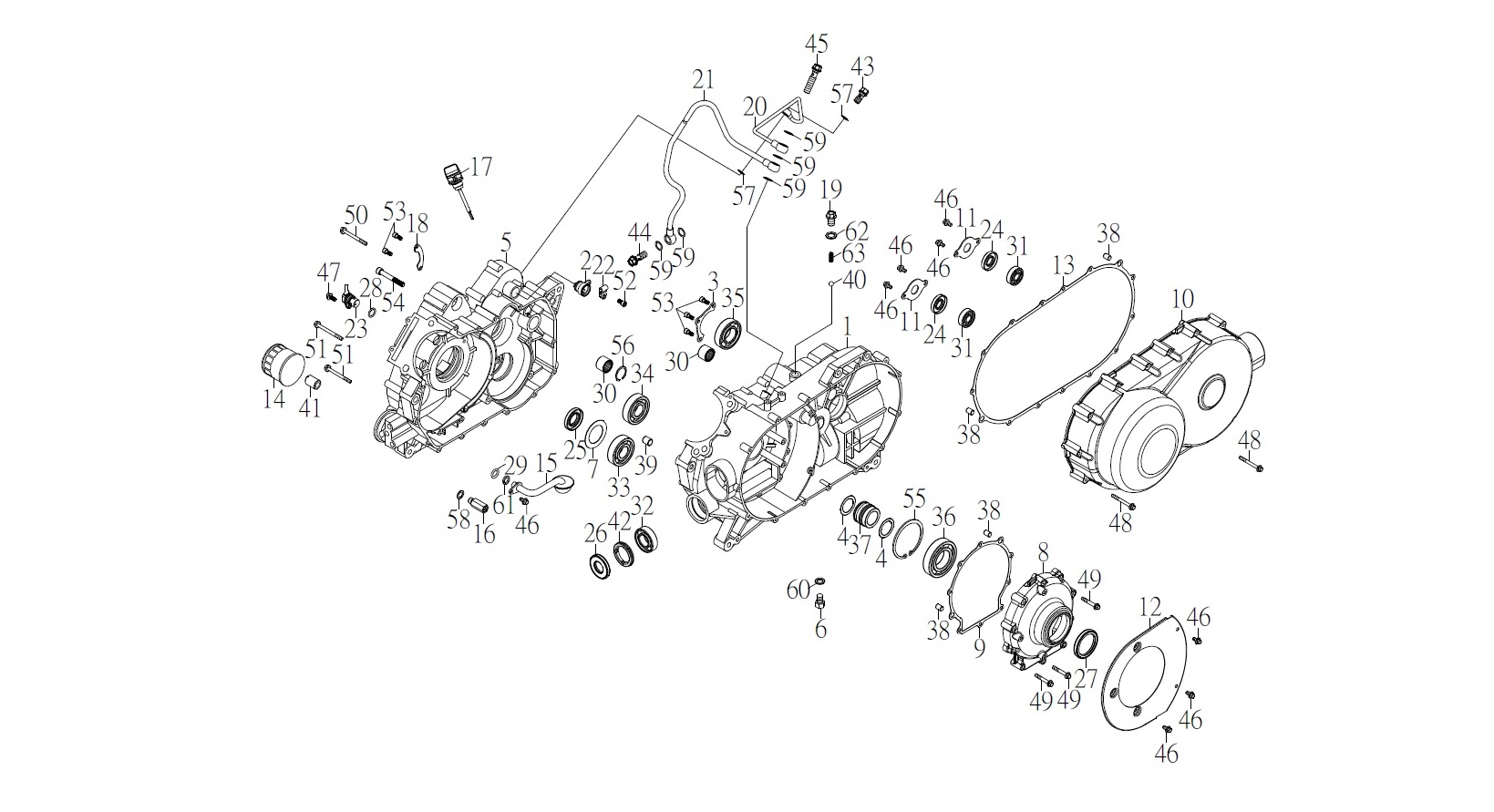

Detailní rozkres Jumbo 720R
Pro objednání nebo poptávky ceny dílu, nás kontaktujte přes email: info@ctyrkolky4u.cz nebo vytvořte objednávku a do poznámky napište číslo dílu, které Vás zajímá.
| Obr.č. | Číslo dílu | Název | ks |
| 1 | 15111-MAX-00 | LEFT CRANKCASE COMP | 1 |
| 2 | 15130-MAX-00 | SELECTOR SWITCH | 1 |
| 3 | 15174-MAX-00 | PLATE, BEARING COVER | 1 |
| 4 | 15175-MAX-00 | SEAL | 2 |
| 5 | 15211-MAX-00 | RIGHT CRANKCASE COMP | 1 |
| 6 | 15223-MAX-00 | BOLT ASSY DRAIN PLUG | 1 |
| 7 | 15228-MAX-00 | SEPARATOR | 1 |
| 8 | 15321-MAX-00 | COVER, CLUTCH | 1 |
| 9 | 15353-MAX-00 | GASKET, CLUTCH COVER | 1 |
| 10 | 15411-MAX-00 | COVER, CVT | 1 |
| 11 | 15428-MAX-00 | PLATE, BEARING COVER | 2 |
| 12 | 15431-MAX-00 | PLATE-CVT COOLING FAN | 1 |
| 13 | 15481-MAX-00 | GASKET, CVT COVER | 1 |
| 14 | 15533-MAX-00 | OIL FILTER ASSY | 1 |
| 15 | 15536-MAX-01 | SCREW, OIL FILTER | 1 |
| 16 | 15556-MAX-00 | RELIEF VALVE ASSY | 1 |
| 17 | 15561-MAX-00 | GAUGE OIL LEVEL ASSY | 1 |
| 18 | 24221-MAX-00 | RETAINER PLATE, DRUM | 1 |
| 19 | 24228-MAX-00 | BOLT, FLANGE | 1 |
| 20 | 43322-MAX-00 | OIL DELIVERY PIPE 1 | 1 |
| 21 | 43324-MAX-00 | OIL DELIVERY PIPE 2 | 1 |
| 22 | 43327-MAX-00 | CLAMP, OIL DELIVERY PIPE | 1 |
| 23 | 61520-CGV-00 | VELOCITY SENSOR | 1 |
| 24 | 93110-17407 | OIL SEAL | 2 |
| 25 | 9311V-25455 | OIL SEAL | 1 |
| 26 | 9311V-35578 | OIL SEAL | 1 |
| 27 | 9311V-48628 | OIL SEAL | 1 |
| 28 | 9321V-25150 | O-RING | 1 |
| 29 | 9321V-35125 | O-RING | 1 |
| 30 | 93310-2230200 | NEEDLE BEARING | 2 |
| 31 | 93320-174012BBL | BALL BEARING | 2 |
| 32 | 93320-255215 | BALL BEARING | 1 |
| 33 | 93320-256217 | BALL BEARING | 1 |
| 34 | 93320-256217U | BALL BEARING | 1 |
| 35 | 93320-306216 | BALL BEARING | 1 |
| 36 | 93320-4080183 | BALL BEARING | 1 |
| 37 | 93510-304834 | COLLAR, CARRIER | 1 |
| 38 | 94410-10014 | PIN, DOWEL | 4 |
| 39 | 94410-14020 | PIN, DOWEL | 2 |
| 40 | 94520-09500 | BALL | 1 |
| 41 | 94710-20027-C | SCREW, OIL FILTER | 1 |
| 42 | 94710-55005-B | BEARING RETAINER | 1 |
| 43 | 94716-10022-G | BOLT, UNION | 1 |
| 44 | 94716-14028-B | BOLT, UNION | 1 |
| 45 | 94716-14050-B | BOLT, UNION | 1 |
| 46 | 96411-06012-B | BOLT, FLANGE | 10 |
| 47 | 96411-06016-B | BOLT, FLANGE | 1 |
| 48 | 96411-06055-B | BOLT, FLANGE | 15 |
| 49 | 96412-06040-B | BOLT, FLANGE | 10 |
| 50 | 96412-06065-B | BOLT, FLANGE | 10 |
| 51 | 96412-06070-B | BOLT, FLANGE | 2 |
| 52 | 96510-06012-K | BOLT, SOCKET | 1 |
| 53 | 96510-06016-B | BOLT, SOCKET | 5 |
| 54 | 96510-08065-B | BOLT, SOCKET | 5 |
| 55 | 97012-80025-K | CIRCLIP | 1 |
| 56 | 97013-30012-K | CIRCLIP | 1 |
| 57 | 97230-101512 | WASHER, COPPER | 2 |
| 58 | 97230-121810 | WASHER, COPPER | 1 |
| 59 | 97230-142015 | WASHER, COPPER | 5 |
| 60 | 97231-122020 | WASHER, ALUMINUM | 1 |
| 61 | 97231-131830 | WASHER, ALUMINUM | 1 |
| 62 | 97231-142220 | WASHER, ALUMINUM | 1 |
| 63 | 97501-1008023 | SPRING, COMPRESSION | 1 |
